Arrow 9EL long needle Tag Gun Usage

taggun and tag pin

STEP-1

Use 50 pc standard tag pin clip or 100 pc standard tag pin clip only for tagging with our Arrow 9EL tag gun.

Load the the connecting bar to the feed slot of the tag gun

STEP-2

Load the the connecting bar to the feed slot of the tag gun as shown in the picture.

Pierce the needle of the tag gun into the price tag hole

STEP-3

Pierce the needle of the tag gun into the price tag hole.

Pierce the tag gun needle to the garment

STEP-4

Pierce the tag gun needle to the garment also.

Press the trigger of the tag gun

STEP-5

Press the trigger of the tag gun.

Tagging is done

STEP-6

Congradulations! Your Tagging is done now.

remove unused tag pins

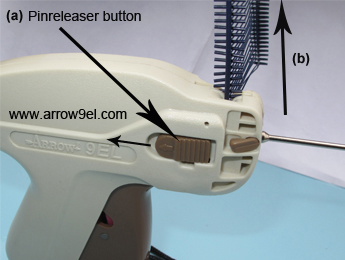

How to remove unused tag pins from Arrow 9EL tag gun after tagging ?


Slide the pin releaser button (a) as indicated towards back of tag gun, and then at the same time (b) pull out the unused tag pins.

Please note, never try to break the tag pins from the garment by pulling it by hand, instead, use a scissor to cut it and avoid Garment damage. For long life of your tagging gun Arrow 9EL needle, ensure that you always cover the needle of the price gun with the needle cap, when the tagging gun Arrow9EL is not in use.
